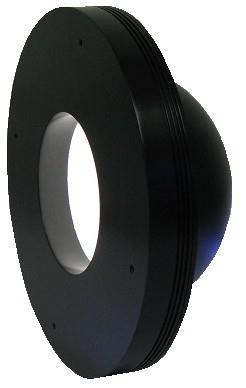

LED Dome Light - High Brightness
max. Trigger Pulse Duration: 10 msec. No resistor needed if lighting works with constant current controller. 24 UV-LEDs (details in the list) + 21 white LEDs ( xy=(0,31, 0,32), LED package XPG, RG2, 24 V/25,2W/max.1,05A, life span in continuous mode 20.000 hours)
6-8-100H24-000FHDM-Si100-UVWLED Dome Light - High Brightness
max. Trigger Pulse Duration: 10 msec. No resistor needed if lighting works with constant current controller. 24 UV-LEDs (details in the list) + 21 white LEDs ( xy=(0,31, 0,32), LED package XPG, RG2, 24 V/25,2W/max.1,05A, life span in continuous mode 20.000 hours)
1FHDM-Si100-UVW.svgUV (365 nm)uv.svg2448
Produkt wurde zur Anfrage hinzugefügt!
Technische Daten
Lichtfarbe/Wellenlänge
UV (365 nm)
Stromstärke
2 A
Leistung
48 W
Spannung
24 V
Illumination Surface:
Ø70 mm
Illumination Inside Dimension:
25 mm
Illumination Outside Diameter:
Ø160x72 mm
Illumination
Operating Voltage:
24 V
Current:
2 A
Power Consumption:
48 W
Voltage:
Continuous = 24V
Pulsing 24-48V
0-10% Duty Cycle
Ripple Voltage:
≤ Vs ±5% V
Eye safety:
RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result.
IP Rating:
N/A
Connector:
JST SMR-03V
Connector Pin:
Pin 1: +
Pin 2: no connection
Pin 3: -
Reverse Battery Protection:
yes
Illumination Surface:
Ø70 mm
Illumination Inside Dimension:
25 mm
Illumination Outside Diameter:
Ø160x72 mm
Mechanical
Housing:
Aluminium
Cable:
300 mm
Weight:
Approx. 860 g
LED
LED Color:
UV (365 nm)
LED Package:
NCSU033B
LED Life Span Strobe:
Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:
10.000 hours
Number of LED
Total Number of LED:
24 LED(s)
Usage
Operating Condition:
Temp 0-35 °C, Humidity 20-85%
Operating Temperature:
after 60 minutes approx. 40°C
Cooling Method:
Attached to machine part for better heat dissipation
UV (365 nm)
