Beleuchtungen Dombeleuchtung FHDM-Si250-B

FHDM-Si250-B

Artikel-Nr.: 6-8-250H24-4

LED Dome Light - High Brightness Only Strobe Control - max. Trigger Pulse Duration: 10 msec Only to use with constant current source controller For working with constant voltage mode, you need to use an external resistor

6-8-250H24-4 FHDM-Si250-B LED Dome Light - High Brightness Only Strobe Control - max. Trigger Pulse Duration: 10 msec Only to use with constant current source controller For working with constant voltage mode, you need to use an external resistor 1 FHDM-Si250.svg blue (470 nm) blue.svg 24 67.2

Technische Daten
Lichtfarbe/Wellenlänge blue (470 nm)
Stromstärke 2.8 A
Leistung 67.2 W
Spannung 24 V
Illumination Surface: Ø212 mm
Illumination Inside Dimension: 50 mm
Illumination Outside Diameter: Ø280x138 mm
Illumination
Operating Voltage: 24 V
Current: 2.8 A
Power Consumption: 67.2 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø212 mm
Illumination Inside Dimension: 50 mm
Illumination Outside Diameter: Ø280x138 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: 1000g
LED
LED Color: blue (470 nm)
LED Package: High Power SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:
Number of LED
Total Number of LED: 56 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: Lighting casing temperature, operating after 60 min. 48 °C
Cooling Method: Attached to large machine part
Working Distance: 0-30 mm

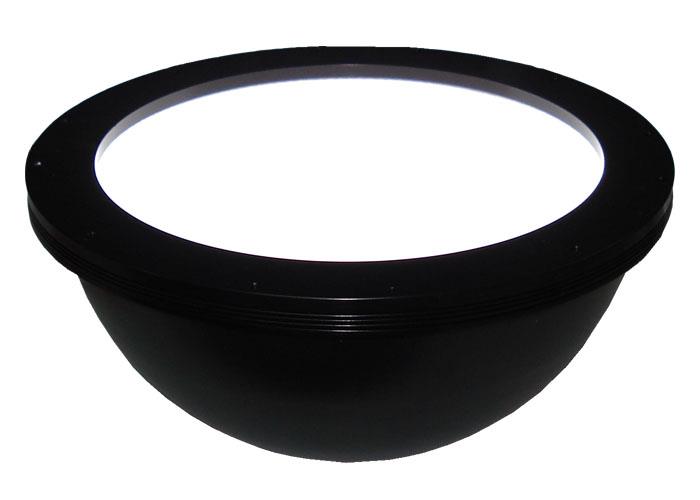

Produktbild FHDM-Si250-B
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
