Beleuchtungen Dombeleuchtung FLDM-i50-SR24

FLDM-i50-SR24

Artikel-Nr.: 6-8-50S24-5

LED Dome Light

6-8-50S24-5 FLDM-i50-SR24 LED Dome Light 1 FLDM-i50.svg SR (626 nm) sr.svg 24 5.04

Technische Daten
Lichtfarbe/Wellenlänge SR (626 nm)
Stromstärke 0.21 A
Leistung 5.04 W
Spannung 24 V
Illumination Surface: Ø46 mm
Illumination Inside Dimension: 11 mm
Illumination Outside Diameter: Ø50x40 mm
Illumination
Operating Voltage: 24 V
Current: 0.21 A
Power Consumption: 5.04 W
Voltage: Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ± 5% V
Eye safety: Exempt Group
IP Rating: IP 50
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø46 mm
Illumination Inside Dimension: 11 mm
Illumination Outside Diameter: Ø50x40 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 95 g
LED
LED Color: SR (626 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 77 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 55°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 0-30 mm

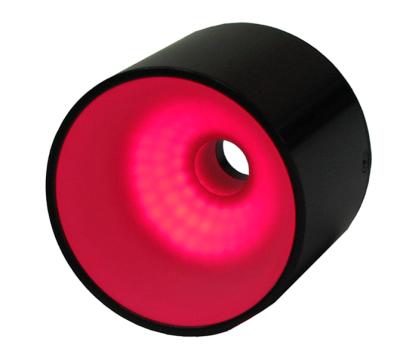

Produktbild FLDM-i50-SR24
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
