Beleuchtungen Linienbeleuchtung FLLN-i1700-W-UPDATE-FOLLOWS

FLLN-i1700-W-UPDATE-FOLLOWS

Artikel-Nr.: 6-14-170024-0

LED Line Light **Model is end of life - successor is FLLN-Si1700**

6-14-170024-0 FLLN-i1700-W-UPDATE-FOLLOWS LED Line Light **Model is end of life - successor is FLLN-Si1700** 1 FLLN-i1300.svg white (xy=0.31,0.32) white.svg 24 33.6

Technische Daten
Lichtfarbe/Wellenlänge white (xy=0.31,0.32)
Stromstärke 1.4 A
Leistung 33.6 W
Spannung 24 V
Illumination
Operating Voltage: 24 V
Current: 1.4 A
Power Consumption: 33.6 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: IP 40
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Mechanical
Housing: Aluminium
Cable: 1000 mm
Weight: Approx. 3922 g
LED
LED Color: white (xy=0.31,0.32)
LED Package: P4
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 196 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 50°C
Cooling Method: Attached to large machine part
Working Distance: 10 - 100 mm

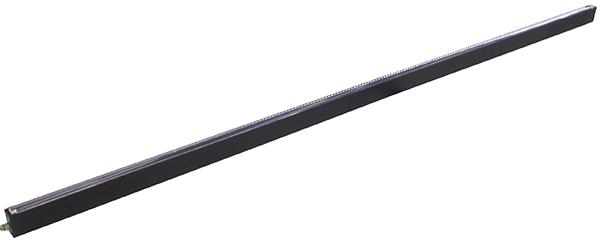

Produktbild FLLN-i1700-W-UPDATE-FOLLOWS
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
