Beleuchtungen Diffuse eckige Dunkelfeldbeleuchtung FFPQ-i50-LA1-SR24

FFPQ-i50-LA1-SR24

Artikel-Nr.: 6-11-50324-5

LED Low Angle Square Diffuse Light

6-11-50324-5 FFPQ-i50-LA1-SR24 LED Low Angle Square Diffuse Light 1 FFPQ-i50-LA1.svg SR (626 nm) sr.svg 24 2.88

Technische Daten
Lichtfarbe/Wellenlänge SR (626 nm)
Stromstärke 0.12 A
Leistung 2.88 W
Spannung 24 V
Illumination
Operating Voltage: 24 V
Current: 0.12 A
Power Consumption: 2.88 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: 80 g
LED
LED Color: SR (626 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 44 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: Lighting casing temperature, operating after 60 min. 36 °C
Cooling Method: Attached to large machine part
Working Distance: 0-20 mm

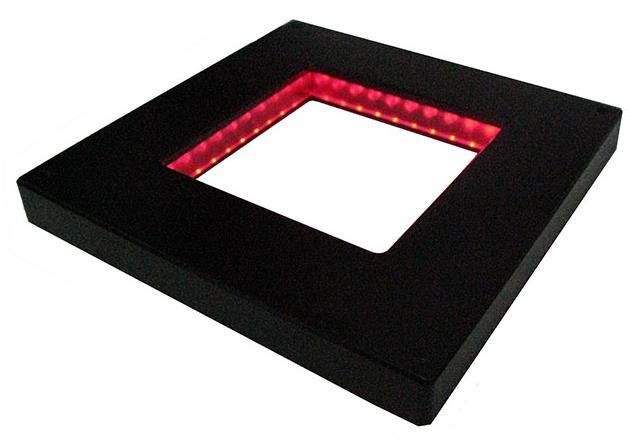

Produktbild FFPQ-i50-LA1-SR24
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
