FHDL-Si100x15-W22
Artikel-Nr.: 6-5-10015H22-0-C
LED High Brightness Bar Light (18-) 24 V continuous mode, better to use in strobe mode with constant current power supply
6-5-10015H22-0-C FHDL-Si100x15-W22 LED High Brightness Bar Light (18-) 24 V continuous mode, better to use in strobe mode with constant current power supply 1 FHDL-Si100x15.svg white (xy=0.31,0.32) white.svg 22 8.8
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 0.4 A |
| Leistung | 8.8 W |
| Spannung | 22 V |
Illumination
| Operating Voltage: | 22 V |
| Current: | 0.4 A |
| Power Consumption: | 8.8 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: N.C. Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 540 mm |
| Weight: | 48g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 28 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 52°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 5-100 mm |

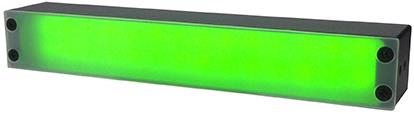

Produktbild
