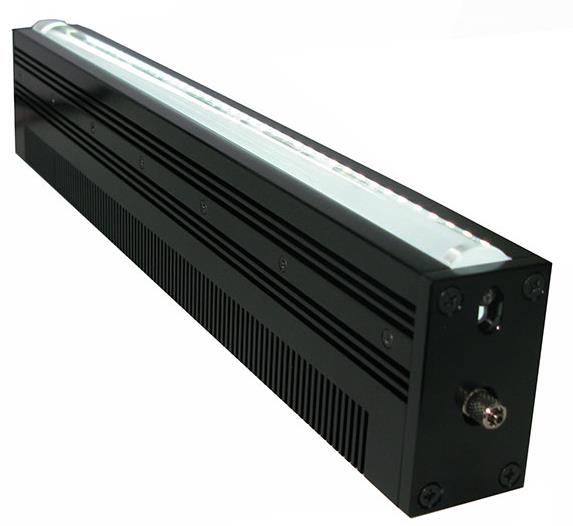

LED High Brightness Line Light with lighting supply voltage 22 V ± 2% (constant voltage mode) / 22-40 V (pulsing)
6-14-1000H24-0 FHLN-Si1000-W LED High Brightness Line Light with lighting supply voltage 22 V ± 2% (constant voltage mode) / 22-40 V (pulsing) 1 FHLN-Si1000.svg white (xy=0.31,0.32) white.svg 24 168
Lichtfarbe/Wellenlänge |
|
Stromstärke | 7 A |
Leistung | 168 W |
Spannung | 24 V |
Operating Voltage: | 24 V |
Current: | 7 A |
Power Consumption: | 168 W |
Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
Ripple Voltage: | ≤ Vs ±5% V |
Eye safety: | RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes |
IP Rating: | IP 50 |
Connector: | JST SMR-03V |
Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
Reverse Battery Protection: | yes |
Housing: | Aluminium |
Cable: | 600 mm |
Weight: | 2376 |
LED Color: |
|
LED Package: | High Power SMD |
LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
LED Life Span Continous: | 20,000 hours |
Number of LED | |
---|---|
Total Number of LED: | 140 LED(s) |
Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
Operating Temperature: | Lighting casing temperature, operating after 60 min. 60 °C |
Cooling Method: | Attached to machine part for better heat dissipation |
Working Distance: | 20 - 100 mm |
Bezeichnung | Länge | Artikel-Nr. |
---|---|---|
JST Stecker | Kabellänge: 30 cm | AC-JST |
M8 Stecker | Kabellänge: 1, 2, 3, 4, 5, 10 Meter oder individuell | AC-M8 |
M12 Stecker | Kabellänge: 1, 2, 3, 4, 5, 10 Meter oder individuell | FWB-M12-X |
Weitere Informationen zu Kabel & Stecker.
Bezeichnung | Artikel-Nr. |
---|---|
Verlängerungskabel 1m - 24V | FWB-1 |
Verlängerungskabel 2m - 24V | FWB-2 |
Verlängerungskabel 3m - 24V | FWB-3 |
Verlängerungskabel 4m - 24V | FWB-4 |
Verlängerungskabel 5m - 24V | FWB-5 |
Verlängerungskabel 10m - 24V | FWB-10 |
