Beleuchtungen Linienbeleuchtung FHLN-Si800-UV24-400

FHLN-Si800-UV24-400

Artikel-Nr.: 6-14-800H24-00-400

LED High Brightness Line Light with lighting supply voltage 22,8 V ± 2% (constant voltage mode) / 22-40 V (pulsing) Only strobe mode!!

6-14-800H24-00-400 FHLN-Si800-UV24-400 LED High Brightness Line Light with lighting supply voltage 22,8 V ± 2% (constant voltage mode) / 22-40 V (pulsing) Only strobe mode!! 1 FHLN-Si800-UV24-400.svg UV (400 nm) uv.svg 24 72

Technische Daten
Lichtfarbe/Wellenlänge UV (400 nm)
Stromstärke 3 A
Leistung 72 W
Spannung 24 V
Illumination
Operating Voltage: 24 V
Current: 3 A
Power Consumption: 72 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result.
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Mechanical
Housing: Aluminium
Cable: 600 mm
Weight: ca. 2567
LED
LED Color: UV (400 nm)
LED Package: High Power SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 112 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes 60°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 20 - 100 mm

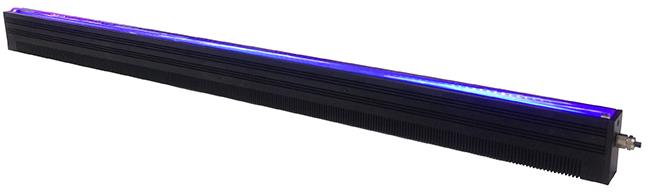

Produktbild FHLN-Si800-UV24-400
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Stecker

Bezeichnung Länge Artikel-Nr.
JST Stecker Kabellänge: 30 cm AC-JST
M8 Stecker Kabellänge: 1, 2, 3, 4, 5, 10 Meter oder individuell AC-M8
M12 Stecker Kabellänge: 1, 2, 3, 4, 5, 10 Meter oder individuell FWB-M12-X

Weitere Informationen zu Kabel & Stecker.

Verlängerungskabel

Bezeichnung Artikel-Nr.
Verlängerungskabel 1m - 24V FWB-1
Verlängerungskabel 2m - 24V FWB-2
Verlängerungskabel 3m - 24V FWB-3
Verlängerungskabel 4m - 24V FWB-4
Verlängerungskabel 5m - 24V FWB-5
Verlängerungskabel 10m - 24V FWB-10

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
