Beleuchtungen Spotbeleuchtung FHSP-Si60N-B


Artikel-Nr.: 6-12-60NH24-4

LED High Brightness Spot Light The new type has a build in resistor!

6-12-60NH24-4 FHSP-Si60N-B LED High Brightness Spot Light The new type has a build in resistor! 1 FHSP-Si60N.svg blue (470 nm) blue.svg 24 8.4

Technische Daten
Lichtfarbe/Wellenlänge blue (470 nm)
Stromstärke 0.35 A
Leistung 8.4 W
Spannung 24 V
Operating Voltage: 24 V
Current: 0.35 A
Power Consumption: 8.4 W
Voltage: Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: Pico M8 (Male)
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Housing: Aluminium
Cable: 0 mm
Weight: 913 g
LED Color: blue (470 nm)
LED Package: High Power SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 7 LED(s)
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: Approx. 56 °C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: max. 10 - 1000 mm

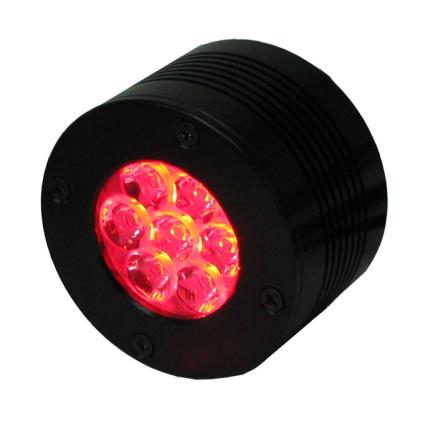

Produktbild FHSP-Si60N-B
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.


JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
