Beleuchtungen Multi-Winkel-Ringlicht FIBS-Si170-8-W

FIBS-Si170-8-W

Artikel-Nr.: 6-9-170824-0

LED Multi-Angle-Ring Light with four angles (L1=top, L8=bottom), white LEDs in all rows L1= 35 LED 0.10A | 2.40W; L2= 49 LED 0.12A | 2.88W; L4= 70 LED 0.20A | 4.80W; L5= 84 LED 0.24A | 5.76W; L6= 91 LED 0.26A | 6.24W; L8= 98 LED 0,28A | 6.72W; L7= 98 LED 0.28A | 6.72W L3= 63 LED; 0.18A | 4.32W

6-9-170824-0 FIBS-Si170-8-W LED Multi-Angle-Ring Light with four angles (L1=top, L8=bottom), white LEDs in all rows L1= 35 LED 0.10A | 2.40W; L2= 49 LED 0.12A | 2.88W; L4= 70 LED 0.20A | 4.80W; L5= 84 LED 0.24A | 5.76W; L6= 91 LED 0.26A | 6.24W; L8= 98 LED 0,28A | 6.72W; L7= 98 LED 0.28A | 6.72W L3= 63 LED; 0.18A | 4.32W 1 FIBS-Si170-8.svg white (xy=(0.31,0.32) white.svg 24 39.84

Technische Daten
Lichtfarbe/Wellenlänge white (xy=(0.31,0.32)
Stromstärke 1.66 A
Leistung 39.84 W
Spannung 24 V
Illumination Surface: Ø150 mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø170 x 50 mm
Illumination
Operating Voltage: 24 V
Current: 1.66 A
Power Consumption: 39.84 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø150 mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø170 x 50 mm
Mechanical
Housing: Aluminium
Cable: 450 mm
Weight: 1388 g
LED
LED Color: white (xy=(0.31,0.32)
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 588 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 49°C (if all L1-L8 turn "ON")
Cooling Method: Attached to large machine part
Working Distance: 1-40 mm

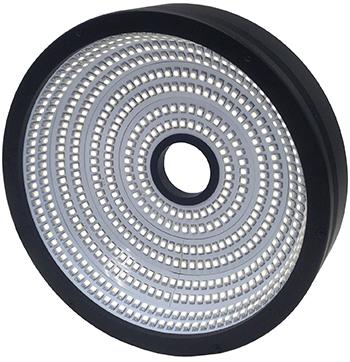

Produktbild FIBS-Si170-8-W
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
