Beleuchtungen Multi-Winkel-Ringlicht FIBS-Si75-3-W

FIBS-Si75-3-W

Artikel-Nr.: 6-9-75324-0

LED Multi-Angle-Ring Light with three angles (L1=top, L3=bottom), white LEDs in all rows
Continuous current / Power Consumption

L1: 0,16 A / 3,84 W
L2: 0,16 A / 3,84 W
L3: 0,16 A / 3,84 W

6-9-75324-0 FIBS-Si75-3-W LED Multi-Angle-Ring Light with three angles (L1=top, L3=bottom), white LEDs in all rows
Continuous current / Power Consumption

L1: 0,16 A / 3,84 W
L2: 0,16 A / 3,84 W
L3: 0,16 A / 3,84 W
1 FIBS-Si75-3.svg white (xy=(0.31,0.32) white.svg 24 11.52

Technische Daten
Lichtfarbe/Wellenlänge white (xy=(0.31,0.32)
Stromstärke 0.48 A
Leistung 11.52 W
Spannung 24 V
Illumination Surface: Ø52 mm
Illumination Inside Dimension: 20 mm
Illumination Outside Diameter: Ø 75,0 x 50,0 mm
Illumination
Operating Voltage: 24 V
Current: 0.48 A
Power Consumption: 11.52 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: 3 x JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø52 mm
Illumination Inside Dimension: 20 mm
Illumination Outside Diameter: Ø 75,0 x 50,0 mm
Mechanical
Housing: Aluminium
Cable: 450 mm
Weight: 290
LED
LED Color: white (xy=(0.31,0.32)
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 168 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 61°C (if all L1-L3 turn "ON")
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 0-40 mm

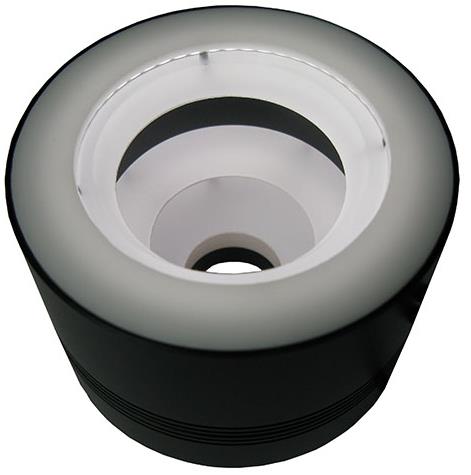

Produktbild FIBS-Si75-3-W
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
