FLDL-Si300x30-RGB
Artikel-Nr.: 6-5-3003024-RGB
LED Bar Light each color separate control SMD RGB LED´s | 24 V | 13.92 W | 0.58 A R = 3.36 W | 0.14 A G = 5.28 W | 0.22 A B = 5.58 W | 0.22 A
6-5-3003024-RGB FLDL-Si300x30-RGB LED Bar Light each color separate control SMD RGB LED´s | 24 V | 13.92 W | 0.58 A R = 3.36 W | 0.14 A G = 5.28 W | 0.22 A B = 5.58 W | 0.22 A 1 FLDL-Si300x30-RGB.svg RGB rgb.svg 24 13.92
Technische Daten
| Lichtfarbe/Wellenlänge |
RGB
|
| Stromstärke | 0.58 A |
| Leistung | 13.92 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.58 A |
| Power Consumption: | 13.92 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | 3 x JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 450 mm |
| Weight: | Approx. 360 g |
LED
| LED Color: |
RGB |
| LED Package: | SMD-LEDs separate colours |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 231 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 48°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 10 - 100 mm |

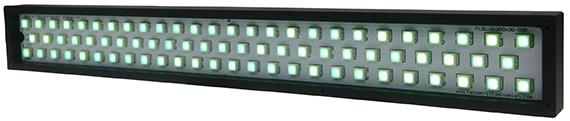

Produktbild
