FLDL-TP-Si300x100-W

Artikel-Nr.: 6-4-30024-0

LED High Brightness Diffuse Back Light

6-4-30024-0 FLDL-TP-Si300x100-W LED High Brightness Diffuse Back Light 1 FLDL-TP-Si300x100.svg white (xy=(0.31,0.32) white.svg 24 53.76 Angebot anfragen

Technische Daten

Lichtfarbe/Wellenlänge	white (xy=(0.31,0.32)
Stromstärke	2.24 A
Leistung	53.76 W
Spannung	24 V

Illumination

Operating Voltage:	24 V
Current:	2.24 A
Power Consumption:	53.76 W
Voltage:	Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage:	≤ Vs ±5% V
Eye safety:	Exempt Group
IP Rating:	IP 50
Connector:	JST SMR-03V
Connector Pin:	Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection:	yes

Mechanical

Housing:	Aluminium
Cable:	600 mm
Weight:	1250 g

LED

LED Color:	white (xy=(0.31,0.32)
LED Package:	SMD
LED Life Span Strobe:	Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:	20,000 hours
Number of LED
Total Number of LED:	784 LED(s)

Usage

Operating Condition:	Temp 0-35 °C, Humidity 20-85%
Operating Temperature:	after 60 minutes approx. 58°C
Cooling Method:	Attached to machine part for better heat dissipation
Working Distance:	5-100 mm

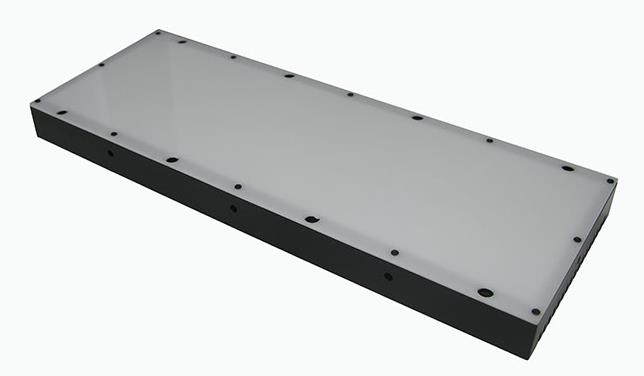

Produktbild

Beispiele | Anwendungsbilder

Schließen

Schließen

Schließen

Schließen

Kabel/Stecker Konfigurator

Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Kabellänge 30-50 cm (Standard) 1 Meter 2 Meter 3 Meter 4 Meter 5 Meter 10 Meter

Stecker JST Male (Standard)> JST Female> Offenes Kabelende> M8 3-polig Male> M8 3-polig Female> M8 4-polig Male> M8 4-polig Female> M12 4-polig Male> M12 4-polig Female> M12 5-polig Male> M12 5-polig Female>
