FLDL-TP-Si36-R
Artikel-Nr.: 6-4-36212-5
LED High Brightness Diffuse Back Light
6-4-36212-5 FLDL-TP-Si36-R LED High Brightness Diffuse Back Light 1 FLDL-TP-Si36.svg red (626 nm) red.svg 12 4.32
Technische Daten
| Lichtfarbe/Wellenlänge |
red (626 nm)
|
| Stromstärke | 0.36 A |
| Leistung | 4.32 W |
| Spannung | 12 V |
Illumination
| Operating Voltage: | 12 V |
| Current: | 0.36 A |
| Power Consumption: | 4.32 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ± 5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 50 |
| Connector: | JST SMR-02V |
| Connector Pin: | Pin 1: + Pin 2: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 40 g |
LED
| LED Color: |
red (626 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 36 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 58°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 5-100 mm |

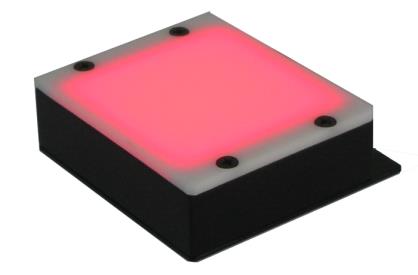

Produktbild
