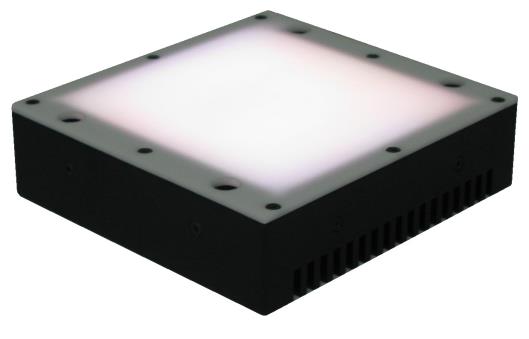

FLDL-TP-Si85x80-RGB

Artikel-Nr.: 6-4-858024-RGB

LED High Brightness Back Light Multicolor. Each colour separate controlled. Each SMD-LED in RGB. red (626 nm), green (525 nm) and blue (470 nm) together 90 LEDs Continuous current: red 0,18 A(4,32 W), green 0,26 A (6,24 W), blue 0,26 A (6,24 W) Total power (R24+G+B): 16,8W

6-4-858024-RGB FLDL-TP-Si85x80-RGB LED High Brightness Back Light Multicolor. Each colour separate controlled. Each SMD-LED in RGB. red (626 nm), green (525 nm) and blue (470 nm) together 90 LEDs Continuous current: red 0,18 A(4,32 W), green 0,26 A (6,24 W), blue 0,26 A (6,24 W) Total power (R24+G+B): 16,8W 1 FLDL-TP-Si85x80-RGB.svg RGB rgb.svg 24 16.8

Technische Daten

Lichtfarbe/Wellenlänge	RGB
Stromstärke	0.7 A
Leistung	16.8 W
Spannung	24 V

Illumination

Operating Voltage:	24 V
Current:	0.7 A
Power Consumption:	16.8 W
Voltage:	Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage:	≤ Vs ±5% V
Eye safety:	Exempt Group
IP Rating:	N/A
Connector:	JST SMR-03V
Connector Pin:	Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection:	yes

Mechanical

Housing:	Aluminium
Cable:	450 mm
Weight:	Approx. 454 g

LED

Number of LED
LED Color:	RGB
LED Package:	SMD
LED Life Span Strobe:	Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous:	20,000 hours
Total Number of LED:	90 LED(s)

Usage

Operating Condition:	Temp 0-35 °C, Humidity 20-85%
Operating Temperature:	after 60 minutes approx. 72°C
Cooling Method:	Attached to machine part for better heat dissipation
Working Distance:	20-100 mm
