FLDL-i130x50-IR24
Artikel-Nr.: 6-5-1305024-55
LED Bar Light
6-5-1305024-55 FLDL-i130x50-IR24 LED Bar Light 1 FLDL-i130x50.svg IR (875 nm) ir.svg 24 10.8
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (875 nm)
|
| Stromstärke | 0.45 A |
| Leistung | 10.8 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.45 A |
| Power Consumption: | 10.8 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | exempt Group |
| IP Rating: | n/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | 210 g |
LED
| LED Color: |
IR (875 nm) |
| LED Package: | T1 3 mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | Est. 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 270 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Operating after 60 min 60°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0-30 mm |

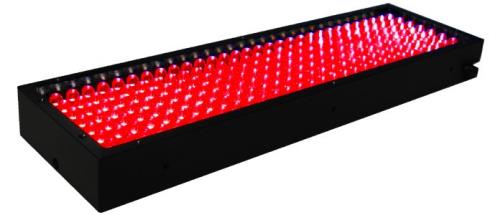

Produktbild
