Beleuchtungen Lichtleiste FLDL-i180x15-UV12

FLDL-i180x15-UV12

Artikel-Nr.: 6-5-18012-00

LED Bar Light UV-375 (375 nm) and UV-400 (400 nm) possible

6-5-18012-00 FLDL-i180x15-UV12 LED Bar Light UV-375 (375 nm) and UV-400 (400 nm) possible 1 FLDL-i180x15-UV.svg UV (375 nm) uv.svg 12 4.32

Technische Daten
Lichtfarbe/Wellenlänge UV (375 nm)
Stromstärke 0.36 A
Leistung 4.32 W
Spannung 12 V
Illumination
Operating Voltage: 12 V
Current: 0.36 A
Power Consumption: 4.32 W
Voltage: Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result.
IP Rating: N/A
Connector: JST SMR-02V
Connector Pin: Pin 1: + Pin 2: -
Reverse Battery Protection: yes
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 173 g
LED
LED Color: UV (375 nm)
LED Package: T1 5mm
LED Life Span Strobe: Est. >10,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 5,000 hours
Number of LED
Total Number of LED: 54 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 42°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 0-100 mm

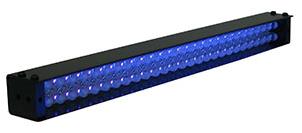

Produktbild FLDL-i180x15-UV12
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

fldr a aufkleber auflicht
FLDL

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female
