Beleuchtungen Lichtleiste FLDL-i300x24-IR


Artikel-Nr.: 6-5-3002412-55

LED Bar Light

6-5-3002412-55 FLDL-i300x24-IR LED Bar Light 1 FLDL-i300x24.svg IR (875 nm) ir.svg 12 15

Technische Daten
Lichtfarbe/Wellenlänge IR (875 nm)
Stromstärke 1.25 A
Leistung 15 W
Spannung 12 V
Operating Voltage: 12 V
Current: 1.25 A
Power Consumption: 15 W
Voltage: Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: IP 30
Connector: JST SMR-02V
Connector Pin: Pin 1: + Pin 2: -
Reverse Battery Protection: yes
Housing: Aluminium
Cable: 300 mm
Weight: 310 g
LED Color: IR (875 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 350 LED(s)
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 55°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 10 - 100 mm

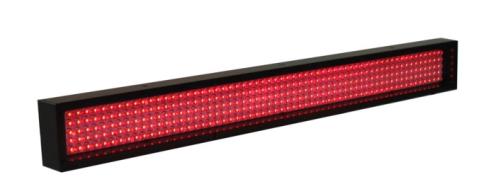

Produktbild FLDL-i300x24-IR
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

fldl tp 9x106


JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
