Beleuchtungen Direkte Ringbeleuchtung FLDR-i56A-IP55-IR

FLDR-i56A-IP55-IR

Artikel-Nr.: 6-2-565512-55

LED Ring Light Direct Type

6-2-565512-55 FLDR-i56A-IP55-IR LED Ring Light Direct Type 1 FLDR-i56A-IP55.svg IR (875 nm) ir.svg 12 3.6

Technische Daten
Lichtfarbe/Wellenlänge IR (875 nm)
Stromstärke 0.3 A
Leistung 3.6 W
Spannung 12 V
Illumination Surface: Ø 52 mm
Illumination Inside Dimension: 18 mm
Illumination Outside Diameter: Ø 62x28 mm
Illumination
Operating Voltage: 12 V
Current: 0.3 A
Power Consumption: 3.6 W
Voltage: Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: IP 55
Connector: JST SMR-02V
Connector Pin: Pin 1: + Pin 2: -
Reverse Battery Protection: yes
Illumination Surface: Ø 52 mm
Illumination Inside Dimension: 18 mm
Illumination Outside Diameter: Ø 62x28 mm
Mechanical
Housing: Aluminium
Cable: 1000 mm
Weight: Approx. 161 g
LED
LED Color: IR (875 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 84 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: Approx. 54°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 5-70 mm

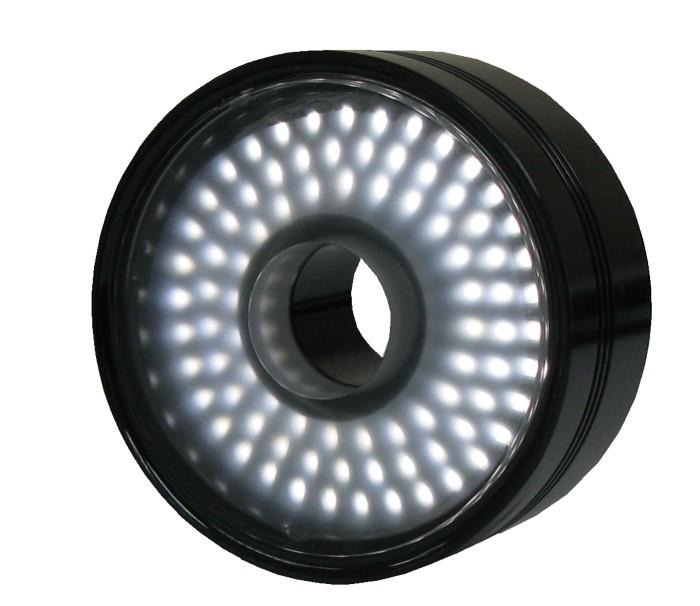

Produktbild FLDR-i56A-IP55-IR
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
