Beleuchtungen Hintergrundbeleuchtung, flach FLFL-Si200-C100-R24

FLFL-Si200-C100-R24

Artikel-Nr.: 6-3-20024-100-5

LED Diffuse Back Light for robotics, Center Hole D = 100 mm

6-3-20024-100-5 FLFL-Si200-C100-R24 LED Diffuse Back Light for robotics, Center Hole D = 100 mm 1 FLFL-Si200-C100.svg red (626 nm) red24.svg 24 15.36

Technische Daten
Lichtfarbe/Wellenlänge red (626 nm)
Stromstärke 0.64 A
Leistung 15.36 W
Spannung 24 V
Illumination
Operating Voltage: 24 V
Current: 0.64 A
Power Consumption: 15.36 W
Voltage: Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Mechanical
Housing: Aluminium
Cable: 600 mm
Weight: Approx. 400 g
LED
LED Color: red (626 nm)
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 160 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 45°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 5-100 mm

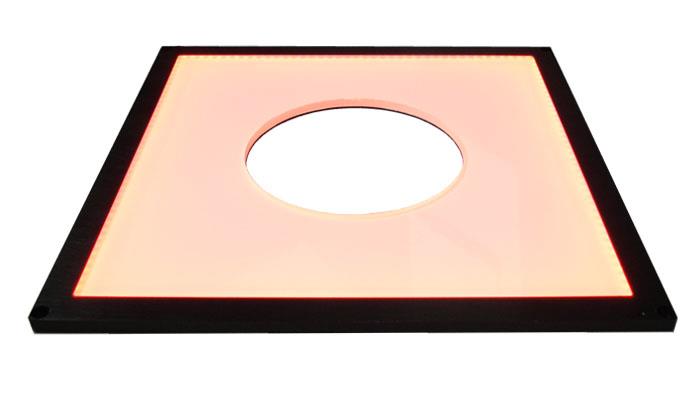

Produktbild FLFL-Si200-C100-R24
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
