Beleuchtungen Diffuse runde Dunkelfeldbeleuchtung FFPR-Si100-B

FFPR-Si100-B

Artikel-Nr.: 6-11-100224-4

LED Low Angle Ring Diffuse Light

6-11-100224-4 FFPR-Si100-B LED Low Angle Ring Diffuse Light 1 FFPR-Si100.svg blue (470 nm) blue.svg 24 6.24

Technische Daten
Lichtfarbe/Wellenlänge blue (470 nm)
Stromstärke 0.26 A
Leistung 6.24 W
Spannung 24 V
Illumination Surface: 94,0 mm
Illumination Inside Dimension: 73 mm
Illumination Outside Diameter: 100x73x40 mm
Illumination
Operating Voltage: 24 V
Current: 0.26 A
Power Consumption: 6.24 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: IP 50
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: 94,0 mm
Illumination Inside Dimension: 73 mm
Illumination Outside Diameter: 100x73x40 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 190 g
LED
LED Color: blue (470 nm)
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 91 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 56°C
Cooling Method: Attached to large machine part
Working Distance: 0-30 mm

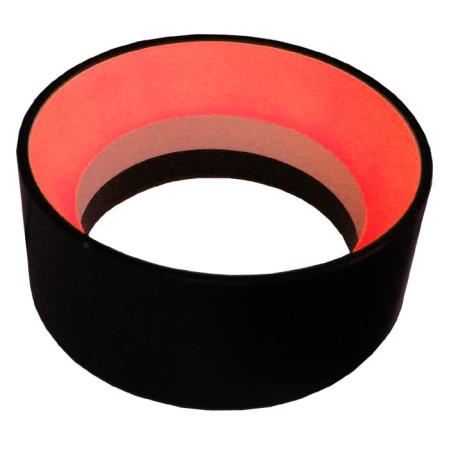

Produktbild FFPR-Si100-B
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
