Beleuchtungen Horizontale runde Dunkelfeldbeleuchtung FHDR-Si75-LA1-HC120-B


Artikel-Nr.: 6-2175HC24-120-4

LED Low Angle Ring Light, half model (120 degree) Highpower **STROBE MODE ONLY **

6-2175HC24-120-4 FHDR-Si75-LA1-HC120-B LED Low Angle Ring Light, half model (120 degree) Highpower **STROBE MODE ONLY ** 1 FHDR-Si75-LA1-HC120.svg blue (470 nm) blue.svg 24 16.8

Technische Daten
Lichtfarbe/Wellenlänge blue (470 nm)
Stromstärke 0.7 A
Leistung 16.8 W
Spannung 24 V
Operating Voltage: 24 V
Current: 0.7 A
Power Consumption: 16.8 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG-2 (Moderate Risk):Caution, do not stare at exposed lamp in operation. May be harmful for eyes
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Housing: Aluminium
Cable: 540 mm
Weight: approx. 35 g
LED Color: blue (470 nm)
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity) at 25°C
LED Life Span Continous: 20,000 hours (drop to 50% intensity) at 25°C
Number of LED
Total Number of LED: 14 LED(s)
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: n. a.
Cooling Method: Attached to large machine part
Working Distance: 0-20 mm

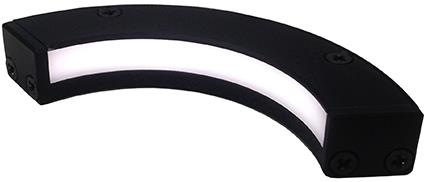

Produktbild FHDR-Si75-LA1-HC120-B
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder


JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
