Beleuchtungen Direkte Ringbeleuchtung FHDR-Si90A-UV24-375

FHDR-Si90A-UV24-375

Artikel-Nr.: 6-2-901H24-00-375

LED Ring Light Direct Type, Supernova High Power

6-2-901H24-00-375 FHDR-Si90A-UV24-375 LED Ring Light Direct Type, Supernova High Power 1 FHDR-Si90A-UV24-375.svg UV (365 nm) uv.svg 24 67.2

Technische Daten
Lichtfarbe/Wellenlänge UV (365 nm)
Stromstärke 2.8 A
Leistung 67.2 W
Spannung 24 V
Illumination Surface: Ø90 mm
Illumination Inside Dimension: 40 mm
Illumination Outside Diameter: Ø 102x23 mm
Illumination
Operating Voltage: 24 V
Current: 2.8 A
Power Consumption: 67.2 W
Voltage: Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result.
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø90 mm
Illumination Inside Dimension: 40 mm
Illumination Outside Diameter: Ø 102x23 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 225 g
LED
LED Color: UV (365 nm)
LED Package: SMD
LED Life Span Strobe: Est. >25,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 10,000 hours
Number of LED
Total Number of LED: 56 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature:
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 30 - 200 mm

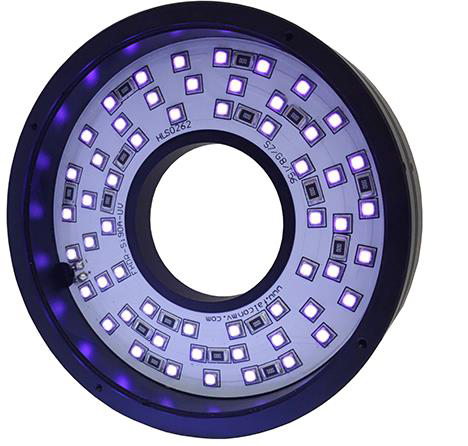

Produktbild FHDR-Si90A-UV24-375
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
