FHSP-M12-IP67-B-0
Artikel-Nr.: 6-12-M1267-4-0
LED High Power Spotbeleuchtung / High Brightness Spot Light M8 connection 4pol. male at the housing ***without resistor***
6-12-M1267-4-0 FHSP-M12-IP67-B-0 LED High Power Spotbeleuchtung / High Brightness Spot Light M8 connection 4pol. male at the housing ***without resistor*** 1 FHSP-M12-IP67.svg blue (470 nm) blue.svg 4 1.05
Technische Daten
| Lichtfarbe/Wellenlänge |
blue (470 nm)
|
| Stromstärke | 0.35 A |
| Leistung | 1.05 W |
| Spannung | 4 V |
Illumination
| Operating Voltage: | 4 V |
| Current: | 0.35 A |
| Power Consumption: | 1.05 W |
| Voltage: | Continuous = 12V Pulsing 12-24V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 67 |
| Connector: | M8 Connector |
| Connector Pin: | Pin 1: + Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Stainless Steel |
| Cable: | mm |
| Weight: | Approx. 17 g |
LED
| LED Color: |
blue (470 nm) |
| LED Package: | High Power SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 1 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 60°C |
| Cooling Method: | with compress air cooling |
| Working Distance: | 0 - 100 |

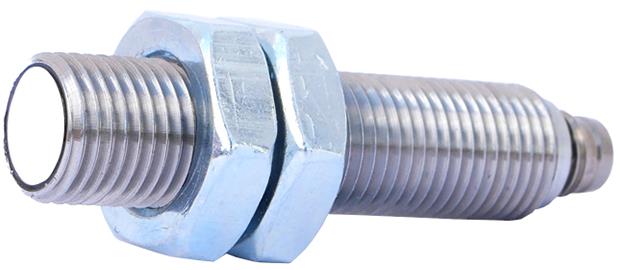

Produktbild
