FLDR-Si100A-RGB
Artikel-Nr.: 6-2-100324-RGB
LED Ring Light Direct Type SMD-LEDs separate colours. 24 SMD-LED red (626 nm), 23 SMD-LED green (525 nm), 23 SMD-LED blue (470 nm). Continuous current red 0.14A (3.36 W), green 0.20A (4.80W), blue 0.20A (4.80W). Total power (R24+G+B) 12.96 W
6-2-100324-RGB FLDR-Si100A-RGB LED Ring Light Direct Type SMD-LEDs separate colours. 24 SMD-LED red (626 nm), 23 SMD-LED green (525 nm), 23 SMD-LED blue (470 nm). Continuous current red 0.14A (3.36 W), green 0.20A (4.80W), blue 0.20A (4.80W). Total power (R24+G+B) 12.96 W 1 FLDR-Si70A-RGB.svg RGB rgb.svg 24 12.96
Technische Daten
| Lichtfarbe/Wellenlänge |
RGB
|
| Stromstärke | 0.54 A |
| Leistung | 12.96 W |
| Spannung | 24 V |
| Illumination Surface: | Ø 95 mm mm |
| Illumination Inside Dimension: | 30 mm |
| Illumination Outside Diameter: | Ø 100x22,5 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.54 A |
| Power Consumption: | 12.96 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 95 mm mm |
| Illumination Inside Dimension: | 30 mm |
| Illumination Outside Diameter: | Ø 100x22,5 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 450 mm |
| Weight: | Approx. 160 g |
LED
| LED Color: |
RGB |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 70 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 20-100 mm |

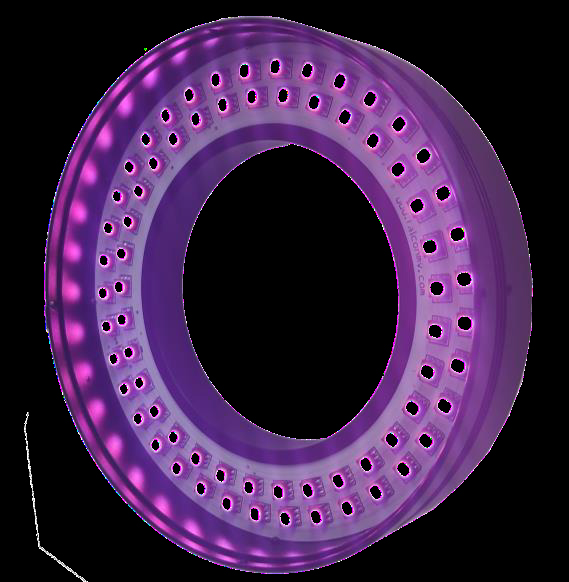

Produktbild
