Beleuchtungen Horizontale runde Dunkelfeldbeleuchtung FLDR-Si150-LA1-RGB

FLDR-Si150-LA1-RGB

Artikel-Nr.: 6-2-150224-RGB

LED Low Angle Ring Light

6-2-150224-RGB FLDR-Si150-LA1-RGB LED Low Angle Ring Light 1 FLDR-Si150-LA1-RGB.svg RGB rgb.svg 24 12.96

Technische Daten
Lichtfarbe/Wellenlänge RGB
Stromstärke 0.54 A
Leistung 12.96 W
Spannung 24 V
Illumination Surface: Ø 118 mm
Illumination Inside Dimension: 118 mm
Illumination Outside Diameter: Ø 150x14 mm
Illumination
Operating Voltage: 24 V
Current: 0.54 A
Power Consumption: 12.96 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø 118 mm
Illumination Inside Dimension: 118 mm
Illumination Outside Diameter: Ø 150x14 mm
Mechanical
Housing: Aluminium
Cable: 450 mm
Weight: Approx. 221 g
LED
LED Color: RGB
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 57°C
Cooling Method: Attached to large machine part
Working Distance: 0-20 mm

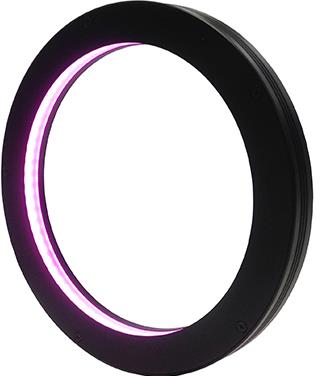

Produktbild FLDR-Si150-LA1-RGB
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
