FLDR-Si180-LA1-HC315-W
Artikel-Nr.: 6-2-1802224-315-0
LED Low Angle Ring Light, half model (315 degree)
6-2-1802224-315-0 FLDR-Si180-LA1-HC315-W LED Low Angle Ring Light, half model (315 degree) 1 FLDR-Si180-LA1-HC315.svg white (xy=0.31,0.32) white.svg 24 8.16
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 0.34 A |
| Leistung | 8.16 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.34 A |
| Power Consumption: | 8.16 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | approx. 197 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity) at 25°C |
| LED Life Span Continous: | 20,000 hours (drop to 50% intensity) at 25°C |
| Number of LED | |
|---|---|
| Total Number of LED: | 119 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 48°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 0 - 20 |

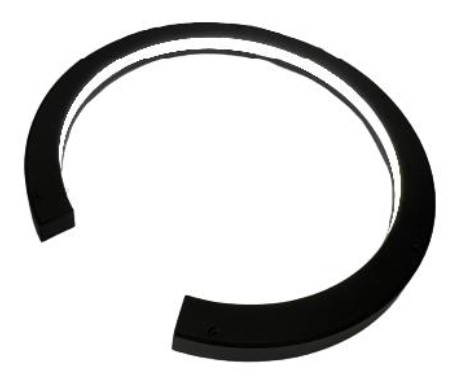

Produktbild
