FLDR-Si180-LA1-RGB
Artikel-Nr.: 6-2-180224-RGB
LED Low Angle Ring Light R = 0.14 A | 3.36 W G = 0.22 A | 5.28 W B = 0.22 A | 5.28 W
6-2-180224-RGB FLDR-Si180-LA1-RGB LED Low Angle Ring Light R = 0.14 A | 3.36 W G = 0.22 A | 5.28 W B = 0.22 A | 5.28 W 1 FLDR-Si180-LA1-RGB.svg RGB rgb.svg 24 13.92
Technische Daten
| Lichtfarbe/Wellenlänge |
RGB
|
| Stromstärke | 0.58 A |
| Leistung | 13.92 W |
| Spannung | 24 V |
| Illumination Surface: | Ø 150 mm |
| Illumination Inside Dimension: | 150 mm |
| Illumination Outside Diameter: | Ø 180x14 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.58 A |
| Power Consumption: | 13.92 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 150 mm |
| Illumination Inside Dimension: | 150 mm |
| Illumination Outside Diameter: | Ø 180x14 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 450 mm |
| Weight: | Approx. 221 g |
LED
| LED Color: |
RGB |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 51°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 0-20 mm |

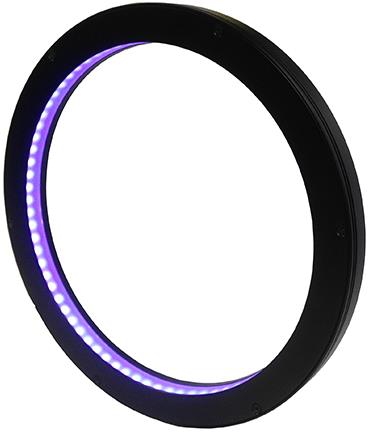

Produktbild
