Beleuchtungen Direkte Ringbeleuchtung FLDR-Si70A-RGB

FLDR-Si70A-RGB

Artikel-Nr.: 6-2-70124-RGB

LED Ring Light Direct Type SMD-LEDs separate colours. 30 SMD-LED red (626 nm), 35 SMD-LED green (525 nm), 35 SMD-LED blue (470 nm). Continuous current red 0.06A (1.44 W), green 0.10A (2.40W), blue 0.10A (2.40W). Total power (R24+G+B) 6.24 W

6-2-70124-RGB FLDR-Si70A-RGB LED Ring Light Direct Type SMD-LEDs separate colours. 30 SMD-LED red (626 nm), 35 SMD-LED green (525 nm), 35 SMD-LED blue (470 nm). Continuous current red 0.06A (1.44 W), green 0.10A (2.40W), blue 0.10A (2.40W). Total power (R24+G+B) 6.24 W 1 FLDR-Si70A-RGB.svg RGB rgb.svg 24 6.24

Technische Daten
Lichtfarbe/Wellenlänge RGB
Stromstärke 0.26 A
Leistung 6.24 W
Spannung 24 V
Illumination Surface: Ø 66 mm mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 80x28 mm
Illumination
Operating Voltage: 24 V
Current: 0.26 A
Power Consumption: 6.24 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø 66 mm mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 80x28 mm
Mechanical
Housing: Aluminium
Cable: 450 mm
Weight: Approx. 272 g
LED
LED Color: RGB
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 100 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: Approx. 50°C
Cooling Method: Attached to large machine part
Working Distance: 20-100 mm

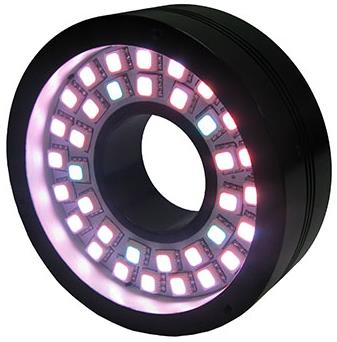

Produktbild FLDR-Si70A-RGB
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
