FLDR-i56A-SR24
Artikel-Nr.: 6-2-56S24-5
LED Ring Light Direct Type
6-2-56S24-5 FLDR-i56A-SR24 LED Ring Light Direct Type 1 FLDR-i56A.svg SR (626 nm) sr.svg 24 5.04
Technische Daten
| Lichtfarbe/Wellenlänge |
SR (626 nm)
|
| Stromstärke | 0.21 A |
| Leistung | 5.04 W |
| Spannung | 24 V |
| Illumination Surface: | 52 mm |
| Illumination Inside Dimension: | 23.5 mm |
| Illumination Outside Diameter: | Ø 56x23,5 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.21 A |
| Power Consumption: | 5.04 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ± 5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 40 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 52 mm |
| Illumination Inside Dimension: | 23.5 mm |
| Illumination Outside Diameter: | Ø 56x23,5 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 60 g |
LED
| LED Color: |
SR (626 nm) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 77 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 55°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 5-100 mm |

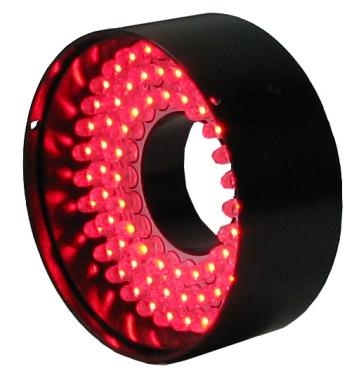

Produktbild
