Beleuchtungen Direkte Ringbeleuchtung FLDR-i70A-B

FLDR-i70A-B

Artikel-Nr.: 6-2-7024-4

LED Ring Light Direct Type

6-2-7024-4 FLDR-i70A-B LED Ring Light Direct Type 1 FLDR-i70A.svg blue (470 nm) blue.svg 24 7.68

Technische Daten
Lichtfarbe/Wellenlänge blue (470 nm)
Stromstärke 0.32 A
Leistung 7.68 W
Spannung 24 V
Illumination Surface: Ø65 mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 70x22,5 mm
Illumination
Operating Voltage: 24 V
Current: 0.32 A
Power Consumption: 7.68 W
Voltage: Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ± 5% V
Eye safety: Exempt Group
IP Rating: IP 00
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø65 mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 70x22,5 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 100 g
LED
LED Color: blue (470 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours(drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 112 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 61°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 5-100 mm

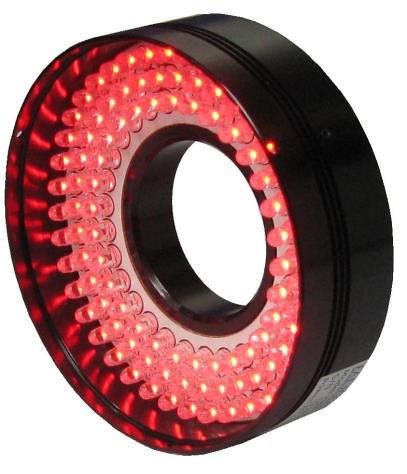

Produktbild FLDR-i70A-B
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
