Beleuchtungen Direkte Ringbeleuchtung FLDR-i70A-UV24

FLDR-i70A-UV24

Artikel-Nr.: 6-2-70124-00-375

LED Ring Light Direct Type

6-2-70124-00-375 FLDR-i70A-UV24 LED Ring Light Direct Type 1 FLDR-i70A-UV.svg UV (375 nm) uv.svg 24 3.84

Technische Daten
Lichtfarbe/Wellenlänge UV (375 nm)
Stromstärke 0.16 A
Leistung 3.84 W
Spannung 24 V
Illumination Surface: Ø65 mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 70x22,5 mm
Illumination
Operating Voltage: 24 V
Current: 0.16 A
Power Consumption: 3.84 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG-2 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result.
IP Rating: IP 00
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection:
Illumination Surface: Ø65 mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 70x22,5 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 100 g
LED
LED Color: UV (375 nm)
LED Package: T1 3/4 5 mm
LED Life Span Strobe: Est. >10,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 5,000 hours
Number of LED
Total Number of LED: 48 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 47°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 10-100 mm

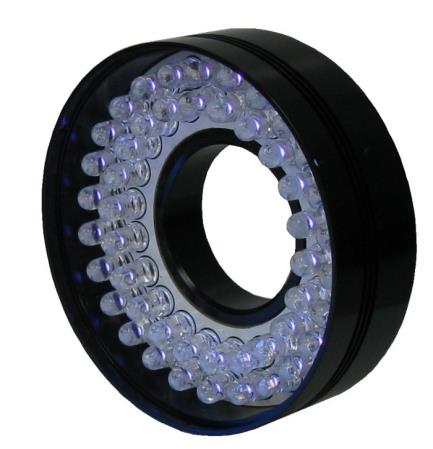

Produktbild FLDR-i70A-UV24
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
