FFDQ-i200-SR24
Artikel-Nr.: 6-8-2004S24-5
LED Flat Dome Light
6-8-2004S24-5 FFDQ-i200-SR24 LED Flat Dome Light 1 FFDQ-i200.svg SR (626 nm) sr.svg 24 19.2
Technische Daten
| Lichtfarbe/Wellenlänge |
SR (626 nm)
|
| Stromstärke | 0.8 A |
| Leistung | 19.2 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.8 A |
| Power Consumption: | 19.2 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Metal |
| Cable: | 600 mm |
| Weight: | 1100g |
LED
| LED Color: |
SR (626 nm) |
| LED Package: | T1 3 mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 480 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 48 °C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 10-75 mm |

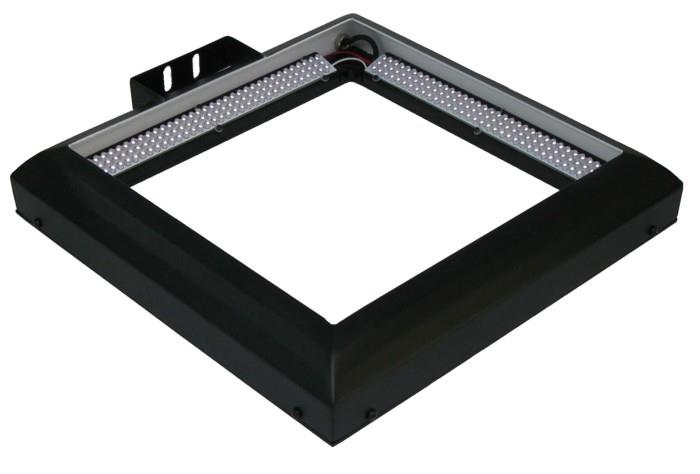

Produktbild
