FLDR-i100B-UV24
Artikel-Nr.: 6-2-100524-00
LED Ring Light Direct Angle available in 375 nm or 400 nm
6-2-100524-00 FLDR-i100B-UV24 LED Ring Light Direct Angle available in 375 nm or 400 nm 1 FLDR-i100B.svg UV (375 nm) uv.svg 24 6.24
Technische Daten
| Lichtfarbe/Wellenlänge |
UV (375 nm)
|
| Stromstärke | 0.26 A |
| Leistung | 6.24 W |
| Spannung | 24 V |
| Illumination Surface: | 98 mm |
| Illumination Inside Dimension: | 65 mm |
| Illumination Outside Diameter: | Ø 103x20 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.26 A |
| Power Consumption: | 6.24 W |
| Voltage: | Continuous = 24V, Pulsing at 24 VDC to 48VDC, 0-10% Duty Cycle, recommended at 36 VDC (constant voltage power supply) |
| Ripple Voltage: | ≤ Vs ± 5% V |
| Eye safety: | RG-3 (High Risk): Caution. Do not look at exposed lamp in operation. Eye injury can result. |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 98 mm |
| Illumination Inside Dimension: | 65 mm |
| Illumination Outside Diameter: | Ø 103x20 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | Approx. 150 g |
LED
| LED Color: |
UV (375 nm) |
| LED Package: | T1 5 mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 78 LED(s) |
| LED per Group: | 6 LED(s) |
| Number of Group: | 13 Group(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes: approx. 53°C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 10-100 mm |

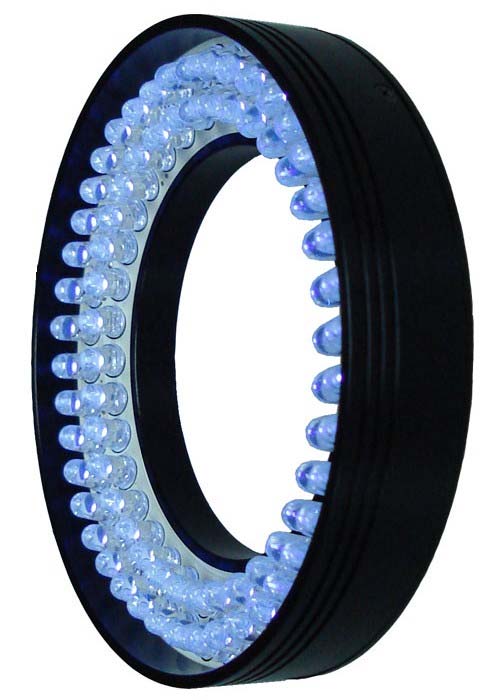

Produktbild
