Beleuchtungen Gewinkelte runde Dunkelfeldbeleuchtung FLDR-i132-LA3-4-SR24

FLDR-i132-LA3-4-SR24

Artikel-Nr.: 6-2-132424-5

LED Low Angle Ring Light 4 segments separate control NPN (sink) type compatible to our power supplies Also available as common cathode (PNP-type)

6-2-132424-5 FLDR-i132-LA3-4-SR24 LED Low Angle Ring Light 4 segments separate control NPN (sink) type compatible to our power supplies Also available as common cathode (PNP-type) 1 FLDR-i132-LA3-4.svg SR (626 nm) sr.svg 24 17.28

Technische Daten
Lichtfarbe/Wellenlänge SR (626 nm)
Stromstärke 0.72 A
Leistung 17.28 W
Spannung 24 V
Illumination Surface: Ø113 mm
Illumination Inside Dimension: 98 mm
Illumination Outside Diameter: Ø 132x22 mm
Illumination
Operating Voltage: 24 V
Current: 0.72 A
Power Consumption: 17.28 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø113 mm
Illumination Inside Dimension: 98 mm
Illumination Outside Diameter: Ø 132x22 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 303 g
LED
LED Color: SR (626 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 240 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 56°C
Cooling Method: Attached to large machine part
Working Distance: 0-30 mm

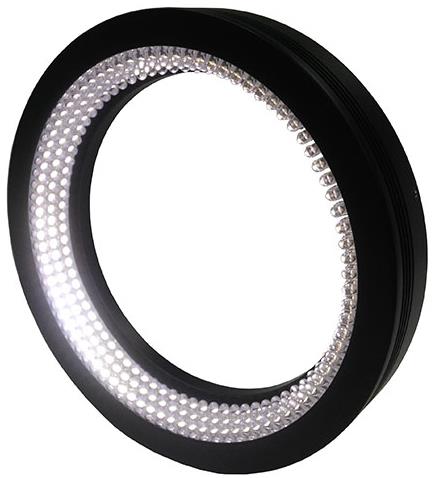

Produktbild FLDR-i132-LA3-4-SR24
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female
