FLDR-i220-LA3-HC140-W
Artikel-Nr.: 6-2-22024-140-0
LED Low Angle Ring Light Half Circle, 140 degree
6-2-22024-140-0 FLDR-i220-LA3-HC140-W LED Low Angle Ring Light Half Circle, 140 degree 1 FLDR-i220-LA3-HC140.svg white (xy=0.31,0.32) white.svg 24 11.52
Technische Daten
| Lichtfarbe/Wellenlänge |
white (xy=0.31,0.32)
|
| Stromstärke | 0.48 A |
| Leistung | 11.52 W |
| Spannung | 24 V |
| Illumination Surface: | Ø 180mm@140 degr mm |
| Illumination Inside Dimension: | 154 mm |
| Illumination Outside Diameter: | HC Ø 220x23 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 0.48 A |
| Power Consumption: | 11.52 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | Ø 180mm@140 degr mm |
| Illumination Inside Dimension: | 154 mm |
| Illumination Outside Diameter: | HC Ø 220x23 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 300 mm |
| Weight: | 199 g |
LED
| LED Color: |
white (xy=0.31,0.32) |
| LED Package: | T1 3mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity) at 25°C |
| LED Life Span Continous: | 20,000 hours (drop to 50% intensity) at 25°C |
| Number of LED | |
|---|---|
| Total Number of LED: | 168 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | after 60 minutes approx. 60 °C |
| Cooling Method: | Attached to machine part for better heat dissipation |
| Working Distance: | 5-100 mm |

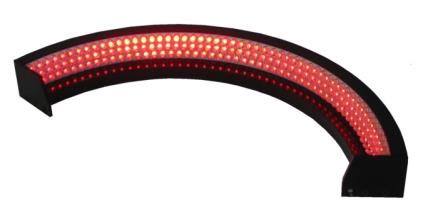

Produktbild
