FLDR-i230B-IR24-5
Artikel-Nr.: 6-2-2305-55
LED Ring Light Direct Angle
6-2-2305-55 FLDR-i230B-IR24-5 LED Ring Light Direct Angle 1 FLDR-i230B-IR24-5.svg IR (875 nm) ir.svg 24 31.2
Technische Daten
| Lichtfarbe/Wellenlänge |
IR (875 nm)
|
| Stromstärke | 1.3 A |
| Leistung | 31.2 W |
| Spannung | 24 V |
| Illumination Surface: | 220 mm |
| Illumination Inside Dimension: | 145 mm |
| Illumination Outside Diameter: | Ø 235x40 mm |
Illumination
| Operating Voltage: | 24 V |
| Current: | 1.3 A |
| Power Consumption: | 31.2 W |
| Voltage: | Continuous = 24V Pulsing 48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | RG1 |
| IP Rating: | N/A |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
| Illumination Surface: | 220 mm |
| Illumination Inside Dimension: | 145 mm |
| Illumination Outside Diameter: | Ø 235x40 mm |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | approx. 1710 g |
LED
| LED Color: |
IR (875 nm) |
| LED Package: | T1 3/4 5 mm |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 416 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | 50°C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 30 - 200 mm |

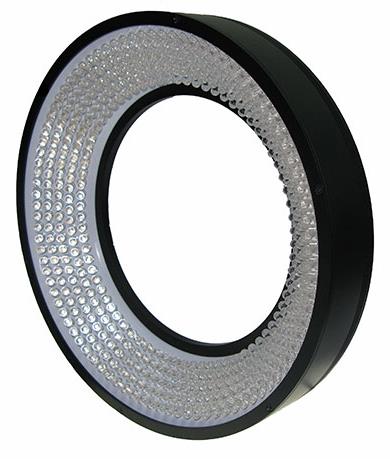

Produktbild
