Beleuchtungen Gewinkelte Ringbeleuchtung FLDR-i420B-8-W

FLDR-i420B-8-W

Artikel-Nr.: 6-2-420824-0-C

LED Customize Ring Light Direct Angle 8 segments separate control NPN (sink) type compatible to our power supplies Also available as common cathode (PNP-type)

6-2-420824-0-C FLDR-i420B-8-W LED Customize Ring Light Direct Angle 8 segments separate control NPN (sink) type compatible to our power supplies Also available as common cathode (PNP-type) 1 FLDR-i420B-8.svg white (xy=0.31,0.32) white.svg 24 76.8

Technische Daten
Lichtfarbe/Wellenlänge white (xy=0.31,0.32)
Stromstärke 3.2 A
Leistung 76.8 W
Spannung 24 V
Illumination Surface: 408 mm
Illumination Inside Dimension: 325 mm
Illumination Outside Diameter: Ø 430x39 mm
Illumination
Operating Voltage: 24 V
Current: 3.2 A
Power Consumption: 76.8 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: RG1
IP Rating: N/A
Connector: HD26 Male
Connector Pin: see datasheet
Reverse Battery Protection: yes
Illumination Surface: 408 mm
Illumination Inside Dimension: 325 mm
Illumination Outside Diameter: Ø 430x39 mm
Mechanical
Housing: Aluminium
Cable: 500 mm
Weight: approx. 3840 g
LED
LED Color: white (xy=0.31,0.32)
LED Package: P4
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 448 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 54°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 200-300 (250)mm

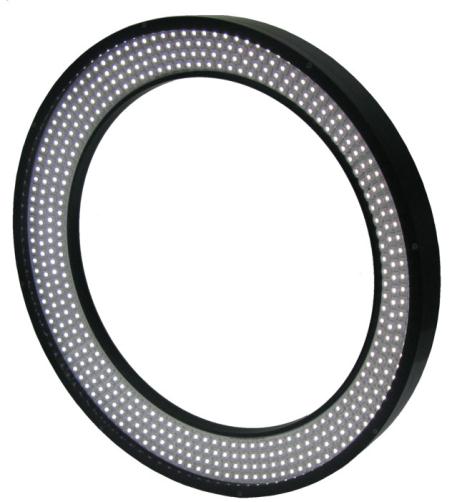

Produktbild FLDR-i420B-8-W
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
