Beleuchtungen Gewinkelte Ringbeleuchtung FLDR-i55NB-HC180-G

FLDR-i55NB-HC180-G

Artikel-Nr.: 6-2-55245N-180-7

LED Half Circle Ring Light Direct Angle 180 degree

6-2-55245N-180-7 FLDR-i55NB-HC180-G LED Half Circle Ring Light Direct Angle 180 degree 1 FLDR-i55NB-HC180.svg green (525 nm) green.svg 24 1.44

Technische Daten
Lichtfarbe/Wellenlänge green (525 nm)
Stromstärke 0.06 A
Leistung 1.44 W
Spannung 24 V
Illumination Surface: Ø 52,0 -180° mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 55-180°x18,0 mm
Illumination
Operating Voltage: 24 V
Current: 0.06 A
Power Consumption: 1.44 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt group
IP Rating: N/A
Connector: JST SMR-03V
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: -
Reverse Battery Protection: yes
Illumination Surface: Ø 52,0 -180° mm
Illumination Inside Dimension: 30 mm
Illumination Outside Diameter: Ø 55-180°x18,0 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 30 g
LED
LED Color: green (525 nm)
LED Package: T1 3mm
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity) at 25°C
LED Life Span Continous: 20,000 hours (drop to 50% intensity) at 25°C
Number of LED
Total Number of LED: 21 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 48°C
Cooling Method: Attached to machine part for better heat dissipation
Working Distance: 0-30 mm

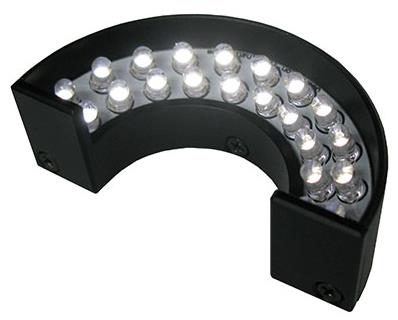

Produktbild FLDR-i55NB-HC180-G
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
