FLFQ-Si245x200-C90-R24
Artikel-Nr.: 6-7-200245-5
LED High Brightness Diffuse Front Light - High Power SMD LEDs rectangle shaped Front Light with aperture for camera
6-7-200245-5 FLFQ-Si245x200-C90-R24 LED High Brightness Diffuse Front Light - High Power SMD LEDs rectangle shaped Front Light with aperture for camera 1 FLFQ-Si245x200-C90.svg red (626 nm) red24.svg 24 32.64
Technische Daten
| Lichtfarbe/Wellenlänge |
red (626 nm)
|
| Stromstärke | 1.36 A |
| Leistung | 32.64 W |
| Spannung | 24 V |
Illumination
| Operating Voltage: | 24 V |
| Current: | 1.36 A |
| Power Consumption: | 32.64 W |
| Voltage: | Continuous = 24V Pulsing 24-48V 0-10% Duty Cycle |
| Ripple Voltage: | ≤ Vs ±5% V |
| Eye safety: | Exempt Group |
| IP Rating: | IP 50 |
| Connector: | JST SMR-03V |
| Connector Pin: | Pin 1: + Pin 2: no connection Pin 3: - |
| Reverse Battery Protection: | yes |
Mechanical
| Housing: | Aluminium |
| Cable: | 600 mm |
| Weight: | 2200g |
LED
| LED Color: |
red (626 nm) |
| LED Package: | SMD |
| LED Life Span Strobe: | Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature) |
| LED Life Span Continous: | 20,000 hours |
| Number of LED | |
|---|---|
| Total Number of LED: | 340 LED(s) |
Usage
| Operating Condition: | Temp 0-35 °C, Humidity 20-85% |
| Operating Temperature: | Approx. 54 °C |
| Cooling Method: | Attached to large machine part |
| Working Distance: | 20-200 mm |

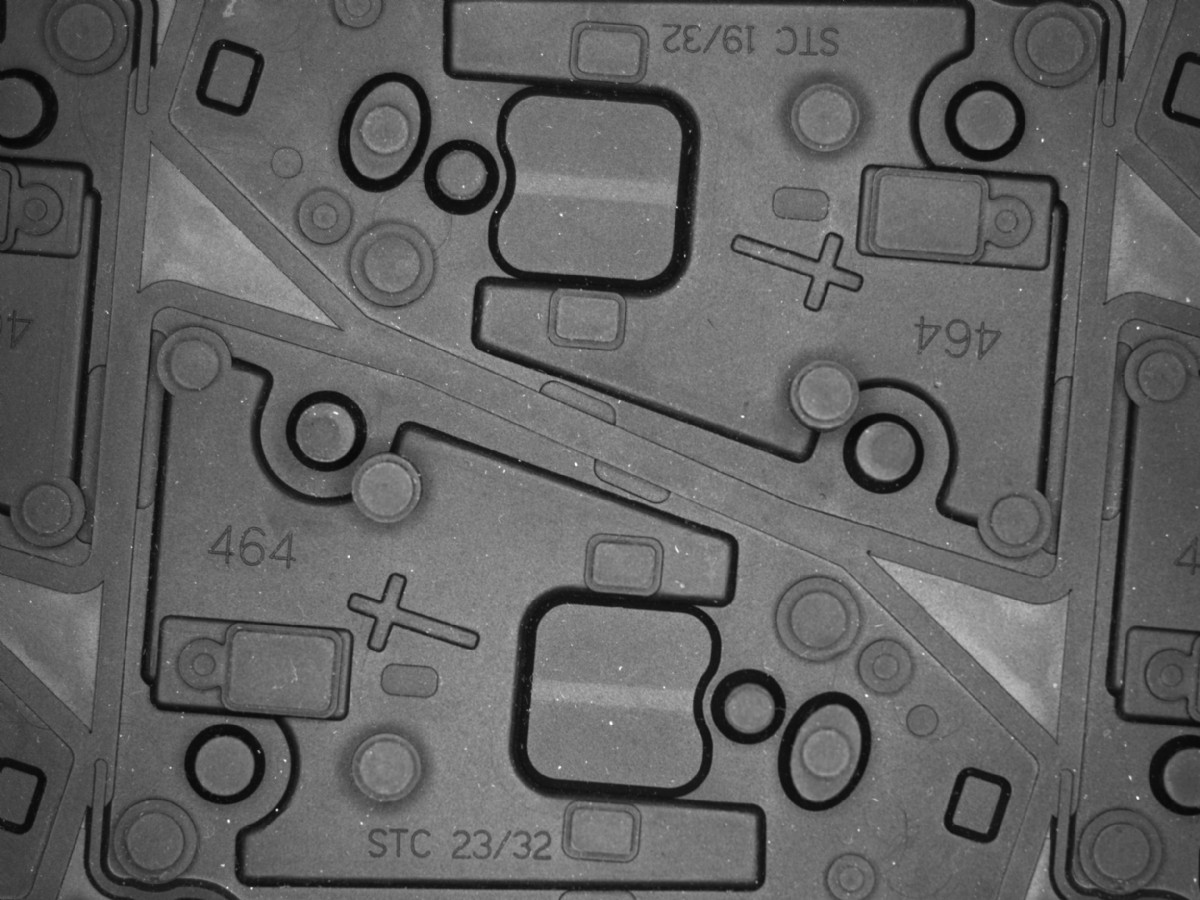

Produktbild
