Beleuchtungen Diffuse direkte Auflichtbeleuchtung FLFR-Si70-IP65-B

FLFR-Si70-IP65-B

Artikel-Nr.: 6-7-706524-4

LED Diffuse Front Light

6-7-706524-4 FLFR-Si70-IP65-B LED Diffuse Front Light 1 FLFR-Si70-IP65.svg blue (470 nm) blue.svg 24 3.84

Technische Daten
Lichtfarbe/Wellenlänge blue (470 nm)
Stromstärke 0.16 A
Leistung 3.84 W
Spannung 24 V
Illumination Surface: Ø60 mm
Illumination Inside Dimension: 20 mm
Illumination Outside Diameter: Ø106xØ20x16 mm
Illumination
Operating Voltage: 24 V
Current: 0.16 A
Power Consumption: 3.84 W
Voltage: Continuous = 24V Pulsing 48V 0-10% Duty Cycle
Ripple Voltage: ≤ Vs ±5% V
Eye safety: Exempt Group
IP Rating: IP 65
Connector: Pico M8 (Male)
Connector Pin: Pin 1: + Pin 2: no connection Pin 3: - Pin 4: no connection
Reverse Battery Protection: yes
Illumination Surface: Ø60 mm
Illumination Inside Dimension: 20 mm
Illumination Outside Diameter: Ø106xØ20x16 mm
Mechanical
Housing: Aluminium
Cable: 300 mm
Weight: Approx. 307
LED
LED Color: blue (470 nm)
LED Package: SMD
LED Life Span Strobe: Est. >50,000 hours (drop to 50% intensity at 25°C ambient temperature)
LED Life Span Continous: 20,000 hours
Number of LED
Total Number of LED: 56 LED(s)
Usage
Operating Condition: Temp 0-35 °C, Humidity 20-85%
Operating Temperature: after 60 minutes approx. 60 °C
Cooling Method: Attached to large machine part
Working Distance: 30 - 200 mm

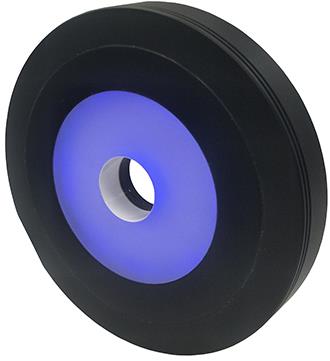

Produktbild FLFR-Si70-IP65-B
Kabel/Stecker Konfigurator
Wir liefern standardmäßig ein Kabel mit ca. 30-50 cm Länge und einem JST Stecker. Die genaue Abmessung finden Sie in unserer Zeichnung.

Beispiele | Anwendungsbilder

Stecker

JST Male (Standard)
JST Female
Offenes Kabelende
M8 3-polig Male
M8 3-polig Female
M8 4-polig Male
M8 4-polig Female
M12 4-polig Male
M12 4-polig Female
M12 5-polig Male
M12 5-polig Female

Weiteres Zubehör

Wir bieten Ihnen umfangreiches Zubehör.
Weitere Informationen finden Sie unter Polfilter oder Adapter.
