LIC-TRG1 Controller

Fast – Universal – Affordable

Compact controller for continuous, switching, and strobe (overdrive) modes
Strobe limit (10 ms) can be activated for safe overdriving
Fast response time for short trigger signals
Supports TTL triggering (+3V to +12V)
Operates with 12–48V LED lighting
Rugged, lightweight housing – ideal for space-constrained installations

The LIC-TRG1 is a compact, high-performance LED strobe controller designed for industrial machine vision applications. It supports 12–48V lightings in continuous, trigger, and strobe (overdrive) mode. For safe overdriving, the strobe time can be limited to 10 ms.

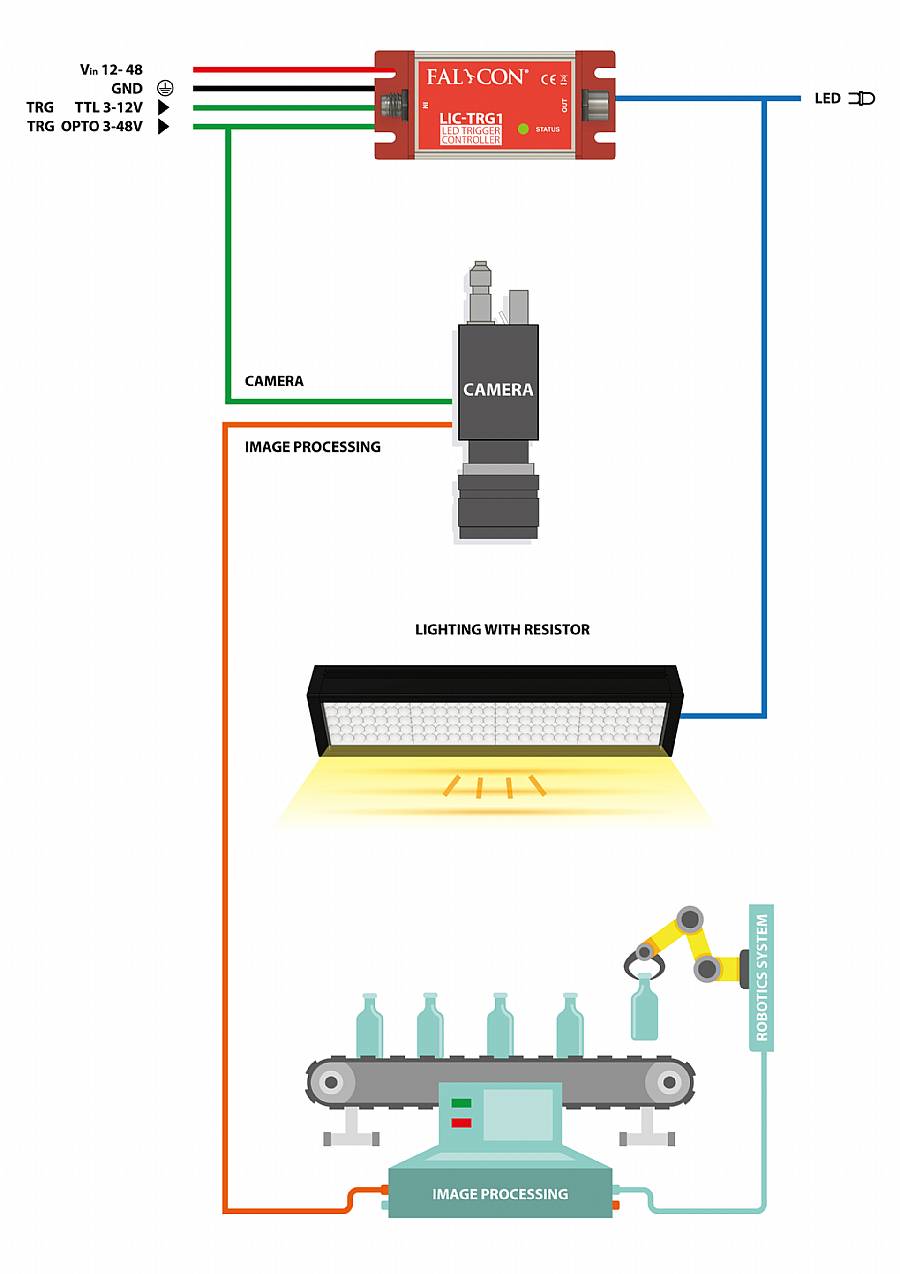

The controller features 4-pin M8 connectors on both input and output. An optocoupler ensures galvanic isolation between power and signal. Alternatively, triggering can be done in TTL mode with +3 V to +12 V. In both cases, the LIC-TRG1 delivers very fast response times.

LIC-TRG1

Electrical Properties
LED Output	1 channel
Trigger Input	1 channel
Modes	Continuous / Trigger / Strobe
Strobe Limit	10ms
Supply Voltage (Vin LED)	12–48 VDC
Output Current (Continuous)	3 A
Output Current (Strobe)	6 A (10% duty cycle)
Trigger Voltage C/S	3–24 V / 3–48 V
Trigger Delay	< 5 µs
Setup Mode	DIP switch
Mechanical Properties
Dimensions (L × W × H)	54 × 33 × 20 mm
Weight	52 g
Connector	2× M8 4-pin
Environmental Conditions
Operating Temperature	0 – 40 °C
Storage Temperature	0 – 60 °C
IP Protection	IP40

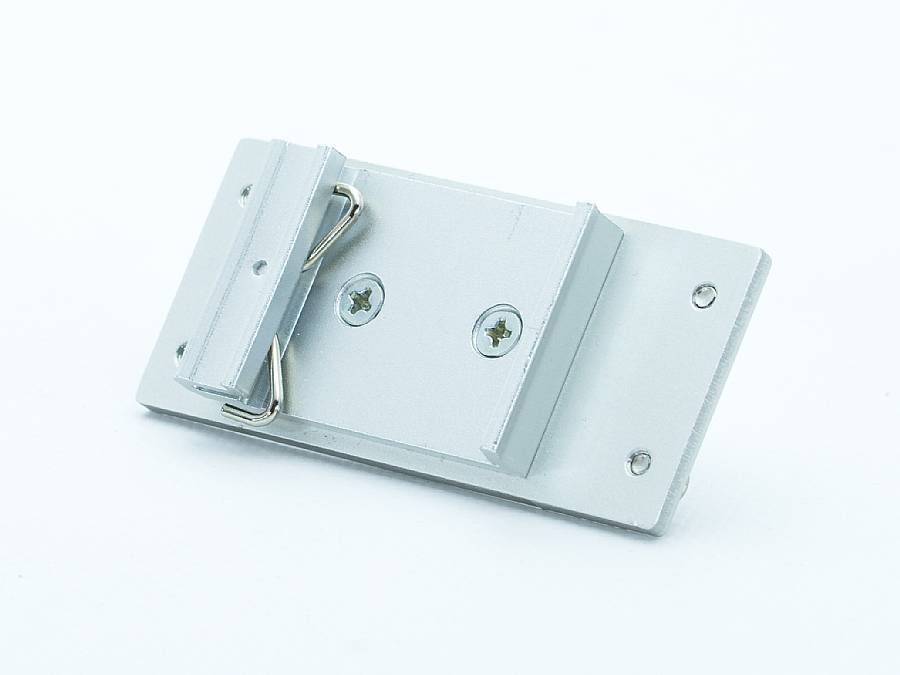

DIN-Rail Adapter Kit

The DIN-Rail Adapter Kit allows for easy and secure mounting of the LIC-TRG1 controller on standard 35 mm DIN rails. Ideal for control cabinets and industrial environments.

Part Number:6-TRG1-H
Compatible with: LIC-TRG1 Controller
Mounting: 35 mm DIN rail (EN 60715)
Scope of Delivery: Bracket, 4x mounting screws
Material: Aluminum

View drawing (PDF)

Compatible with common camera systems:

Allied Vision (AVT)

Baumer / VeriSens

Basler

Cognex

IDS Imaging

Sensopart

Keyence / PLC

and many more

*Custom wiring examples available on request – were happy to support your integration.
